Catalog #

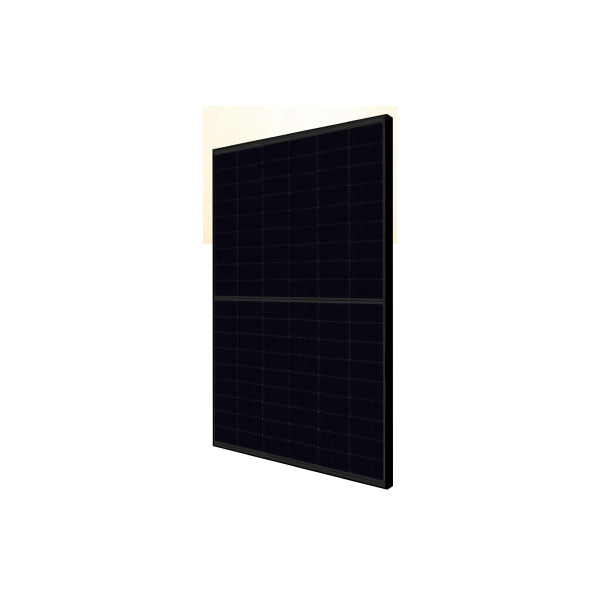

CS6.1-54TM-440H
Mfr. Part #
CS6.1-54TM-440H
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
332
Watts STC
440 W
Cells
108
Technology
Monocrystalline
Open Circuit Voltage (Voc)
38.5
Short Circuit Current (Isc)
14.41
Max Power Voltage (Vmpp)
32.6
Max Power Current (Impp)
13.52
Max Current
25 A
Efficiency
21.6
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
35
Frame Color
Black
Connector
T6, MC4, MC4-EVO2 or MC4-EVO2A
Output Cables
4 mm2 (IEC), 12 AWG (UL) 1500 mm (61.0 in) (+)/1100 mm (43.3 in) (-)
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.25
Fire Classification (Type)
Type 2
General Information
Dimensions
1800 L x 1134 W x 35 H mm
Weight
50.7 Lbs.
Series
TOPHiKu6 (All-Black)
Approvals
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
IEC62941:2019
IEC 61215
IEC 61730
UL 61730
IEC 61701
IEC 62716
IEC 60068-2-68
