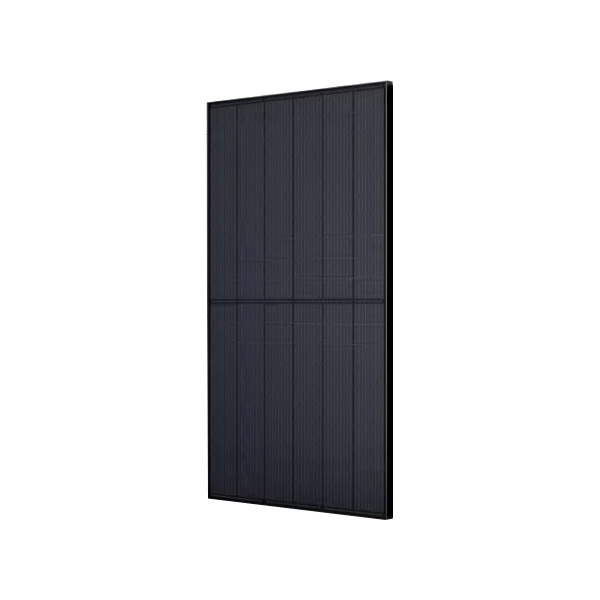

Eagle 60HM G2 | 315W 60 Half-Cell Mono BLK/BLK 1000V Solar Panel, JKM315M-60HBL

Catalog #
JKM315M-60HBL
Mfr. Part #
JKM315M-60HBL
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

Eagle 60HM G2 | 315W 60 Half-Cell Mono BLK/BLK 1000V Solar Panel, JKM315M-60HBLThe Eagle G2 modules include our Diamond cells. These uniquely designed cells feature high-efficiency mono PERC technology and enable module power up to 410W.Features:• Uniquely designed high-performance 5 busbar mono PERC cells• UL and IEC 1500V certified; lowers BOS costs and yields better LCOE• Reinforced cells prevent PID• Excellent performance in low-light environments• Certified for high snow and wind loads• 25-year linear power warranty

Technical Specifications

Watts STC
315 W
Cells
60
Technology
Mono
Open Circuit Voltage (Voc)
40.7
Short Circuit Current (Isc)
10.04
Max Power Voltage (Vmpp)
33.2
Max Power Current (Impp)
9.49
Max Current
9.49 A
Efficiency
18.67
Max System Voltage
33.2 V
Frame Material
Aluminum
Frame Thickness (mm)
35
Frame Color
Black
Backsheet Material
Black
Connector
T4
Output Cables
PV Wire
Series Fuse Rating (Amps)
20
Temp Coefficient (Pmpp)
-0.36
Temp Coefficient (Voc)
-0.28
Fire Classification (Type)
1

General Information

Dimensions
66.30 L x 39.45 W x 1.38 H In.
Approvals
UL1703
IEC61215
IEC61730
