Catalog #
4,210,091,801
Mfr. Part #
4,210,091,801
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description

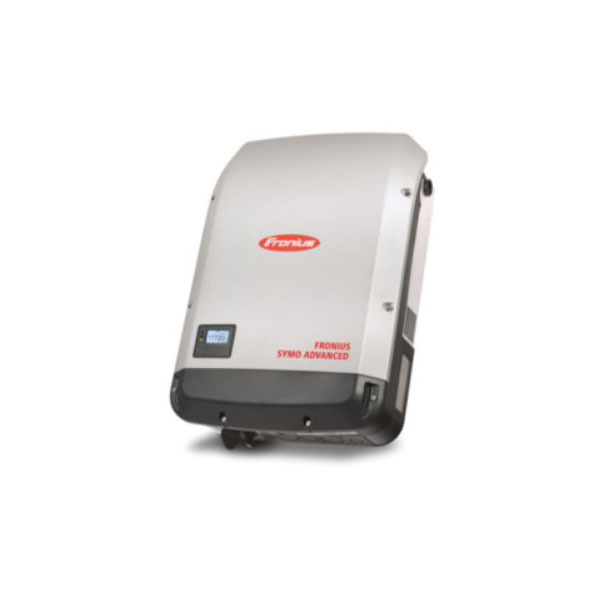

Fronius Symo Advanced 12kW 208/240VAC SunSpec PLC Inverter, 4,210,091,801
Featuring ten models ranging from 10 kW to 24 kW, the Fronius Symo Advanced is the ideal inverter for commercial applications. The new Advanced versions combine the benefits of the Fronius Symo with additional value for states with Module Level Shutdown requirements including integrated PLC transmitter for SunSpec Rapid Shutdown communication standard, compliance with NEC pre-2014, 2014 and 2017, zero tilt mounting, lightweight and field serviceability.
Technical Specifications
Continuous AC Power Output
12000 W
AC Voltages
208, 240 VAC
AC Frequencies
60 Hz
Recommended PV Input (STC)
12000
Topology
Transformerless
Phase
3 Phase
Maximum DC Input Voltage
600 VDC
Maximum DC Input Current
41.5 A
Peak Efficiency
97
CEC Efficiency
96.5
Number of MPPT's
2
Max MPPT Voltage
500
Min MPPT Voltage
300
Positive Input Channels
2
Negative Input Channels
2
General Information
Type
String Inverter
