Catalog #
Q.PEAK DUO XL-G10.3/BFG 480
Part #
Q.PEAK DUO XL-G10.3/BFG 480
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
General Information
Manufacturer
Series
Q.Peak Duo XL-G10
Part #
Q.PEAK DUO XL-G10.3/BFG 480
Catalog #
Q.PEAK DUO XL-G10.3/BFG 480
Dimensions
2216 L x 1045 W x 35 H mm
Weight
64.2 Lbs.
Approvals
Quality Controlled PV - TUV Rheinland; UL 61730
CE-compliant
IEC 61215:2016
IEC 61730:2016
Technical Specifications
Watts PTC
361.4
Watts STC
480 W
Cells
156
Technology
Q.ANTUM DUO Z
Open Circuit Voltage (Voc)
53.58
Short Circuit Current (Isc)
12.17
Max Power Voltage (Vmpp)
45.32
Max Power Current (Impp)
11.58
Max Current
20 A
Efficiency
22.7
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
0.08 in (2.0 mm) semi-tempered glass
Connector
Staubli MC4, Staubli MC4-Evo2, Hanwha Q CELLS HQC4, IP68
Output Cables
4 mm² Solar cable; (+) ≥27.6in (700mm), (-) ≥13.8in (350mm)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 29
Data Sheets and Collateral
View
Datasheet
Q.PEAK DUO XL-G10.3/BFG 480
Other Products in this Series
Similar Products
Toggle Attribution

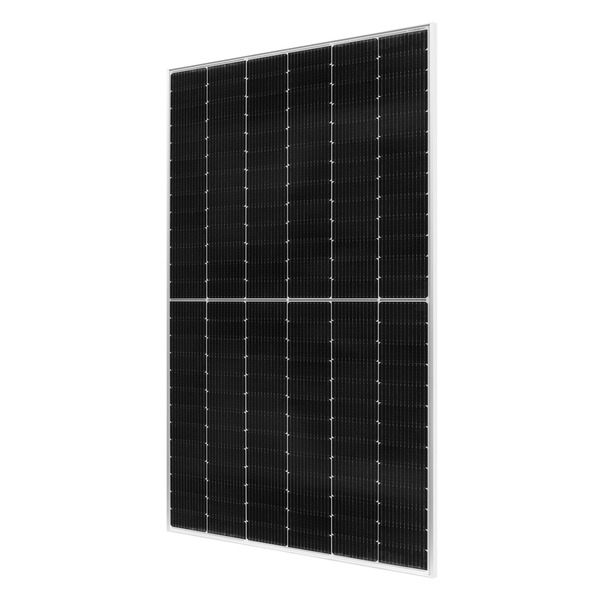

Photo by Greentech Renewables
