Catalog #

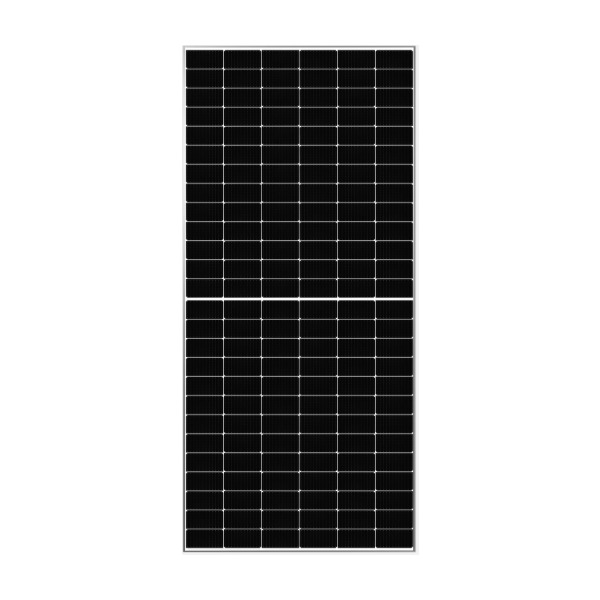

Q.TRON XL-G2.3/BFG 625
Mfr. Part #
Q.TRON XL-G2.3/BFG 625
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
472.5
Watts STC
625 W
Cells
156
Technology
Q.ANTUM NEO TOPCon N-Type
Open Circuit Voltage (Voc)
57.18
Short Circuit Current (Isc)
15.31
Max Power Voltage (Vmpp)
47.69
Max Power Current (Impp)
14.51
Max Current
30 A
Efficiency
22.4
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
0.08 In (2.0 mm) Semi-Tempered Glass
Connector
Staubli MC4-Evo2, Staubli MC4 ; IP68
Output Cables
4 mm2 Solar cable; (+) ≥ 29.5 in (750 mm), (-) ≥ 13.8 in (350 mm)
Temp Coefficient (Pmpp)
-0.3
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 29
General Information
Dimensions
2462 L x 1134 W x 35 H mm
Weight
77.8 Lbs.
Series
Q.Tron XL-G2
Approvals
UL 61730
CE-compliant
IEC 61215:2016
IEC 61730:2016
