Catalog #

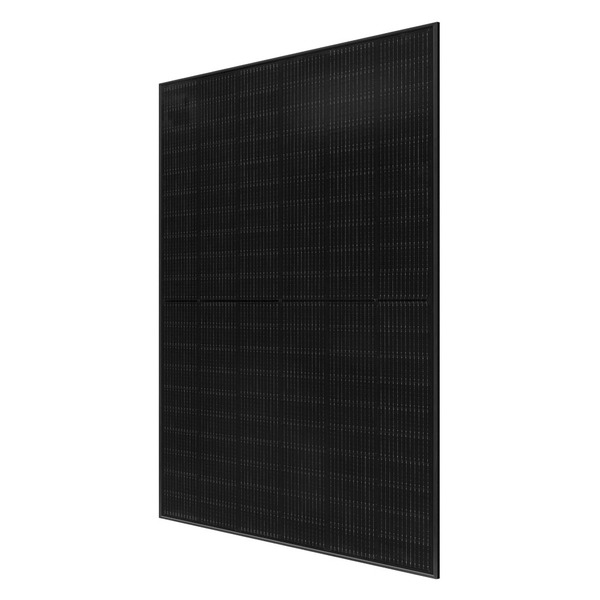

DCA.17 Q.PEAK DUO BLK ML-G10+ 410
Mfr. Part #
DCA.17 Q.PEAK DUO BLK ML-G10+ 410
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
307.6
Watts STC
410 W
Cells
132
Technology
Monocrystalline
Open Circuit Voltage (Voc)
45.37
Short Circuit Current (Isc)
11.20
Max Power Voltage (Vmpp)
37.64
Max Power Current (Impp)
10.89
Max Current
20 A
Efficiency
20.9
Frame Material
Anodized Aluminum
Frame Thickness (mm)
32
Frame Color
Black
Backsheet Material
Composite Film
Connector
Staubli MC4
Output Cables
4mm2 Solar cable 72.04in (1830mm)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 2
General Information
Dimensions
1879 L x 1045 W x 32 H mm
Weight
48.5 Lbs.
Series
Q.Peak Duo BLK ML-G10+
Approvals
UL61730-1 & UL61730-2
CE-compliant
Quality Controlled PV - TUV Rheinland
IEC 61215:2016
IEC 61730:2016
