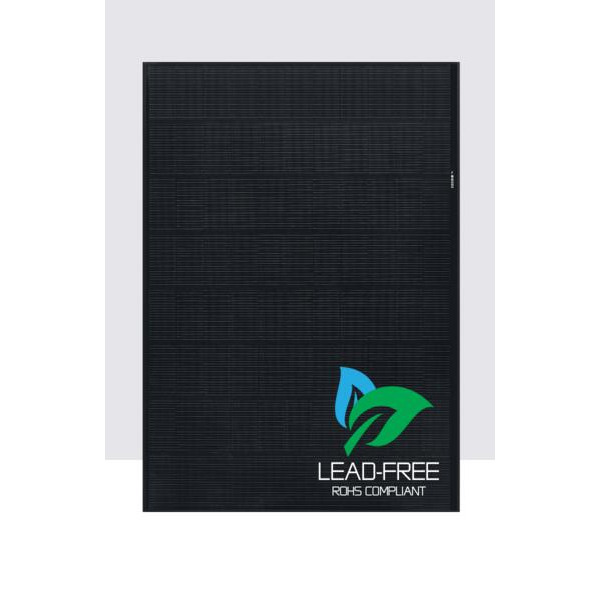

Catalog #
REC470AA PURE-RX
Mfr. Part #
REC470AA PURE-RX
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts STC
470 W
Cells
88
Technology
HJT
Open Circuit Voltage (Voc)
65.9
Short Circuit Current (Isc)
8.95
Max Power Voltage (Vmpp)
55.4
Max Power Current (Impp)
8.49
Max Current
25 A
Efficiency
22.6
Frame Material
Anodized Aluminum
Frame Thickness (mm)
30
Frame Color
Black
Backsheet Material
Highly resistant polymer
Connector
Staubli MC4 PV-KBT4/KST4
Output Cables
12 AWG solar cable, 66.9 in (1.70 m) + 66.9 in (1.70 m)
Temp Coefficient (Pmpp)
-0.24
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 2
General Information
Dimensions
1728 L x 1205 W x 30 H mm
Weight
50 Lbs.
Series
Alpha Pure-RX
Approvals
ISO 14001
ISO9001
IEC45001
IEC62941
IEC 61215:2021
IEC 61730:2023
UL 61730
ISO 11925-2
IEC 62716
IEC 61701
IEC 61215:2016
