Part #

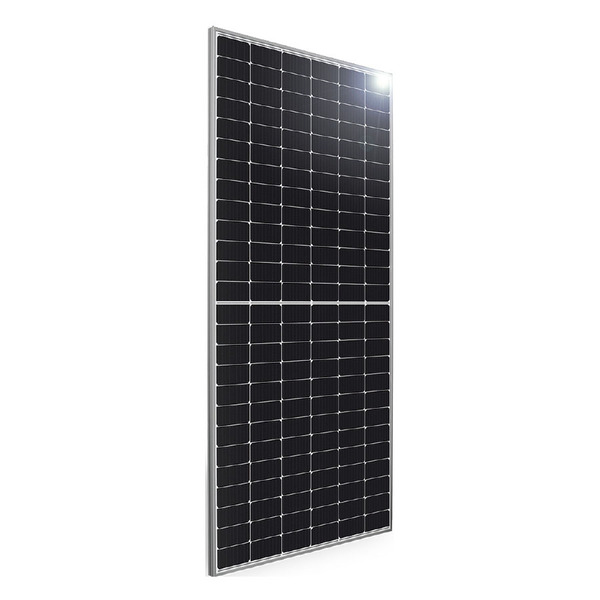

SIL 630 XL DCB
Manufacturer
Series
Category
Take advantage of our extensive on-site inventory.
For wholesale pricing and availability:
General Information
Manufacturer
Series
Part #
SIL 630 XL DCB
Catalog #
SIL 630 XL DCB
Dimensions
2465 L x 1133 W x 35 H mm
Weight
65.8 Lbs.
Approvals
UL 61215
UL 61730
CSA C22.2#61730
IEC 61215
IEC 61730
IEC 61701
IEC 62716
Technical Specifications
Watts STC
630 W
Cells
156
Technology
N-Type
Open Circuit Voltage (Voc)
57.78
Short Circuit Current (Isc)
15.13
Max Power Voltage (Vmpp)
48.47
Max Power Current (Impp)
14.40
Max Current
30 A
Efficiency
22.56
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
High durability, superior hydrolysis and UV resistance, multi-layer dielectric film, transparent PV backsheet
Connector
Staubli EVO2
Output Cables
(+)1350 mm, (-)350mm, φ 5.7 mm
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 1
Data Sheets and Collateral
View
Datasheet
SIL 630 XL DCB
