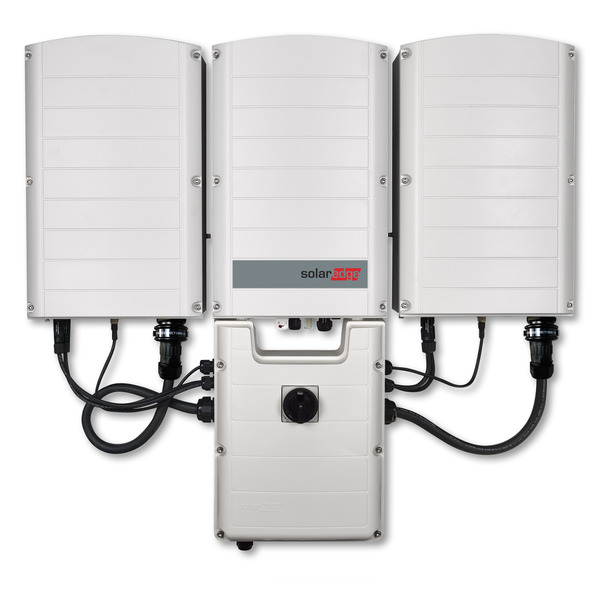

SolarEdge 208/480V 3-Phase Universal Secondary Inverter SESU-USRS0NNN4

Catalog #
SESU-USRS0NNN4
Mfr. Part #
SESU-USRS0NNN4
Manufacturer
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

SolarEdge 208/480V 3-Phase Universal Secondary Inverter SESU-USRS0NNN4

Note: A SolarEdge Primary unit is required.

SolarEdge is offering a new generation of commercial inverters and combining large capacity with ease of installation. The inverter design is based on small, lightweight, and easy-to-carry primary and secondary units. They are wall mounted for a minimal footprint, with installation only requiring a one or two-person crew.

No crane or special tools are needed for installing the inverter, unlike alternative large capacity inverters, which are heavy, bulky, and difficult to install. Installing SolarEdge’s large capacity inverters instead of using multiple, smaller capacity inverters will further reduce setup times and costs.

Features:

  • Independent operation of each unit enables easy serviceability for high system uptime
  • Connection to the SolarEdge Monitoring Platform via Ethernet or wireless communications, including optional built-in cellular GSM
  • No wasted ground area: wall/rail mounted, or horizontally mounted under the modules (10° inclination)
  • Designed for tough working environments
  • Includes a built-in RS485 Surge Protection Device, designed to protect the RS485 transceiver from electrical surges
  • Integrated DC Safety Unit with DC Safety Switch and optional surge protection and DC fuses, eliminating the need for external DC isolators
  • Built-in double RS485 connections

Technical Specifications

Continuous AC Power Output
33000 W
Max Operating Voltage
529 V
Min Operating Voltage
422 V
AC Voltages
277/480 VAC
AC Frequencies
60 Hz
Recommended PV Input (STC)
850 W
Topology
Transformerless
Phase
3 Phase
Maximum DC Input Voltage
1000 VDC
Maximum DC Input Current
120 A
CEC Efficiency
98.5 %
Enclosure Ratings
NEMA 3R
Mounting Type
Rack

General Information

Type
String Inverter

Datasheets

Installation Manuals
