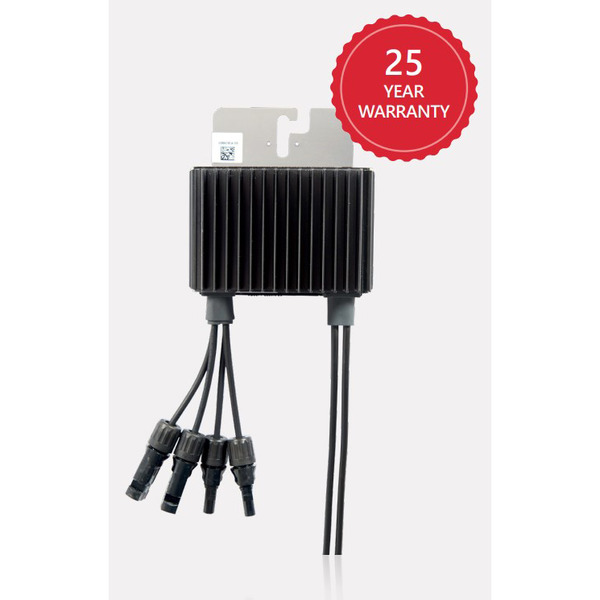

SolarEdge 860W Rail Mounted Optimizer w/ Dual Input MC4 Connectors, P860

Catalog #
P860
Mfr. Part #
P860
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

SolarEdge 860W Rail Mounted Optimizer w/ Dual Input MC4 Connectors, P860

Note: For 2x 72 Cell Modules.

Designed for fast, single bolt installation on 72-cell modules, the SolarEdge power optimizers maximize energy throughput from each and every module through constant tracking of Maximum Power Point (MPPT) individually per module. Automatically maintains a fixed string voltage, they allow optimal efficiency of the SolarEdge inverter and provide installers greater flexibility to design optimal PV systems for maximum space utilization. This flexibility mitigates effects from manufacturing tolerance, partial shading and orientation while allowing for multiple orientations, tilts and module types in the same string.

The SolarEdge power optimizers use next-generation module-level monitoring to ensure the performance of each panel and to communicate performance data to the SolarEdge monitoring portal. Each optimizer is equipped with the unique SafeDC™feature which automatically shut down modules' voltage whenever inverter or the grid power are shut down. All SolarEdge power optimizers have a 25-year manufacturer warranty.

System Design

Compatible SolarEdge Inverters:

  • Three Phase 208V
  • Minimum Power Optimizers: 8 optimizers
  • Minimum PV Modules: 16 modules
  • Maximum Power Optimizers: 30 optimizers
  • Maximum PV Modules 60 modules
  • Maximum Power per String: 7,200W DC
  • Three Phase 480V
  • Minimum Power Optimizers: 13 optimizers
  • Minimum PV Modules: 26 modules
  • Maximum Power Optimizers: 30 optimizers
  • Maximum PV Modules 60 modules
  • Maximum Power per String: 15,300W DC

Installation Specifications

  • Maximum Allowed System Voltage: 1000Vdc
  • Input Connector: MC4 compatible
  • Output Wire Type / Connector: Double insulated, MC4 Compatible
  • Output Wire Length: 83“
  • Operating Temperature Range: -40F to +185 °F
  • Enclosure Protection Rating: IP68, NRMA6P
  • Relative Humidity: 0 - 100
  • Parallel Strings of Different Lengths or Orientations: Yes

Technical Specifications

Max Power
860 W
Input Voltage
60 VDC
Voltage Range
12.5-60 V
Short Circuit Current
22 A
Output Current
18 A
Output Voltage
85 V
Efficiency
99.5 %
Peak Efficiency
99.5 %
CEC Efficiency
98.6 %
Frequency
60 Hz
Max MPPT Voltage
60 V
Min MPPT Voltage
12.5 V
Number of MPPT's
2
Positive Input Channels
2
Negative Input Channels
2

General Information

Dimensions
32.2 W x 61.6 L x 5 H In.
Type
Micro-inverter
Approvals
UL
