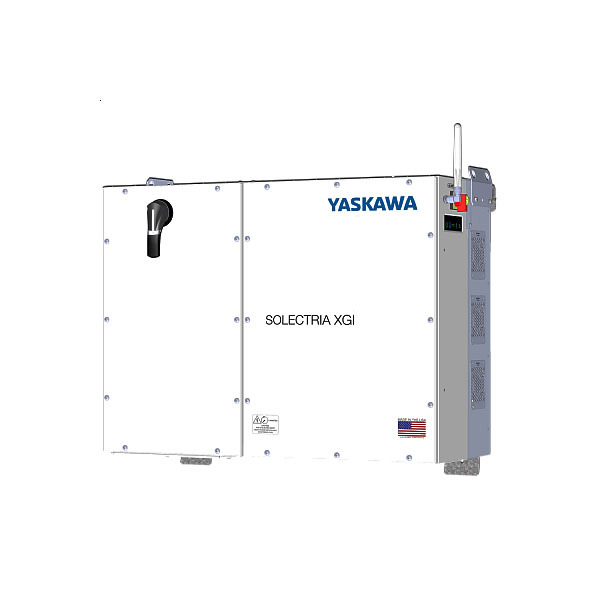

Yaskawa-Solectria XGI 166kW 600VAC TL Inverter XGI 1500-166/166

Catalog #
XGI 1500-166/166-UL
Mfr. Part #
XGI 1500-166/166-UL
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

Yaskawa-Solectria XGI 166kW 600VAC TL Inverter XGI 1500-166/166Yaskawa Solectria Solar's XGI 1500 utility-scale string inverters are designed for high reliability and built of the highest quality components that were selected, tested and proven to last beyond their warranty.XGI 1500 inverters provide advanced grid-support functionality and meet the latest IEEE 1547 and UL 1741 standards for safety. They are the most powerful 1500 VDC string inverters in the PV market and have been engineered for both distributed and centralized system architecture.Designed and engineered in Lawrence, MA, XGI inverters are assembled and tested at Yaskawa America's facilities in Buffalo Grove, IL. They are Made in the USA with global components and are compliant with the Buy American Act.Features:• Made in the USA with global components• Buy American Act (BAA) compliant• Robust, dependable and built to last• 99.0% peak efficiency• Lowest O&M and installation costs• Access to all inverters on-site via wifi from on location• Remote software & firmware updates• SunSpec Modbus certified• Tested compatible with the Tesla PowerPack Microgrid System

Technical Specifications

Continuous AC Power Output
166000 W
Max Operating Voltage
1250 V
Min Operating Voltage
860 V
AC Voltages
600 VAC
AC Frequencies
60 Hz
Topology
Transformerless
Phase
3 Phase
Maximum DC Input Voltage
1500 VDC
Maximum DC Input Current
197.7 A
Peak Efficiency
99 %
CEC Efficiency
98.5 %
Number of MPPT's
1
Enclosure Ratings
Type 4X

General Information

Type
Central Inverter
Approvals
UL 1741
IEEE 1547
UL 1998

Datasheets
