Catalog #

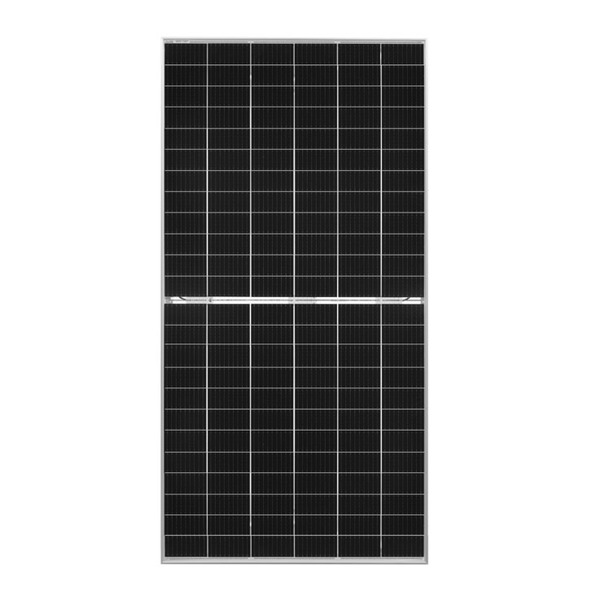

JKM540M-72HL4-TV-40MM
Mfr. Part #
JKM540M-72HL4-TV-40MM
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts STC
540 W
Cells
144
Technology
Monocrystalline
Open Circuit Voltage (Voc)
49.49
Short Circuit Current (Isc)
13.87
Max Power Voltage (Vmpp)
40.91
Max Power Current (Impp)
13.20
Max Current
30 A
Efficiency
20.94
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
40
Frame Color
Silver
Output Cables
12 AWG, 1400mm [55.12in]
Temp Coefficient (Pmpp)
-0.35
Temp Coefficient (Voc)
-0.28
Fire Classification (Type)
Type 1
General Information
Dimensions
2274 L x 1134 W x 40 H mm
Weight
64.82 Lbs.
Series
Eagle 72HM G5b
Approvals
ISO9001:2015 Quality Standards
ISO14001:2015 Environmental Standards
IEC61215
IEC61730 certified products
ISO45001:2018 Occupational Health & Safety Standards
UL61730 certified products
