Catalog #
CLASSIC 250
Mfr. Part #
CLASSIC 250
Manufacturer
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

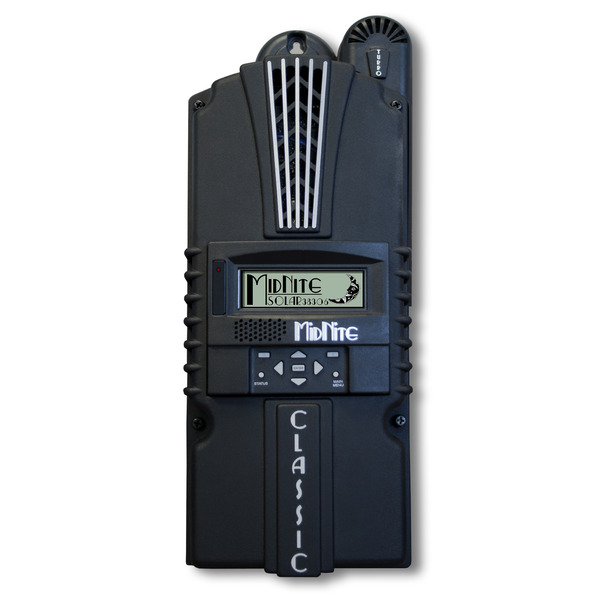

MidNite Solar CLASSIC 250 MPPT Charge Controller

The Classic 250 MPPT Charge Controller has Arc Fault, Ground Fault, free web monitoring, a graphics panel and Solar, Hydro and Wind Modes. The Classic 250 has a maximum output current of 63 amps, an operating voltage of 250 volts and works with 12 to 72 volt battery systems. The FREE MidNite Solar Local Application enables you to monitor your Classics over your local network or the Internet. As with the whole Classic Line, the Classic 250 has MidNite’s exclusive HyperVOC which extends VOC limits when needed.FEATURES:

• 250 operating voltage

• Max current out: 63 amps

• ETL listed to UL1741 and CSA

• Type 1 environmental rating

• Terminals are rated for 75 C

• Exclusive HyperVOC extends VOC limits

• 12-72V battery

• Built in DC-GFP and Arc Fault

• Detector

• Solar, wind and hydro MPPT modes

Ships with MidNite Battery Temperature Sensor (MNBTS) and printed Manual.

• Listed by ETL for US and Canada

• CE Certified Listed

• FCC Class B Listed

• Made in the USA

Technical Specifications

Operating Voltage
250 V
Max Input (PV) Voltage
250
Max Input (PV) Current
63
Battery Voltages
12
Max Output (Battery) Current
63
Technology
MPPT
Special Features
Battery Hook UP

General Information

Dimensions
14.9 x 6 x 4 In.
Approvals
UL
