MidNite Solar MNPV16 Combiner 16 Input 15A 600V

Catalog #
Mfr. Part #
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

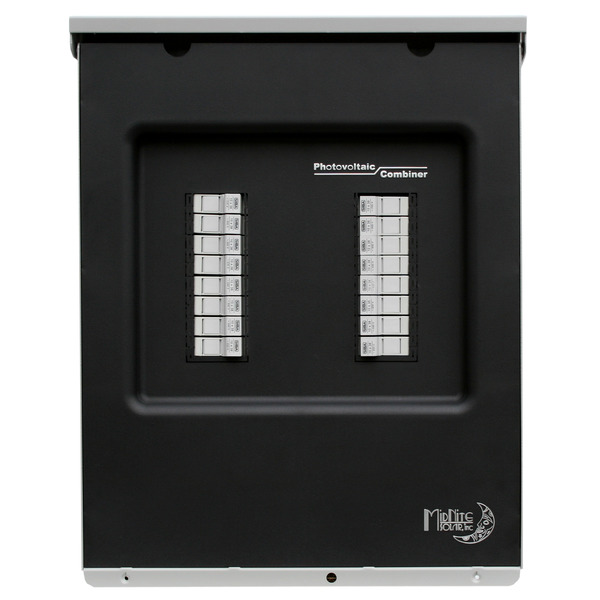

MidNite Solar MNPV16 Array Combiner for 16x 600VDC fuseholders

MidNite Solar offers a range of PV Combiners from our MNPV3 to the MNPV16. This range of combiners accommodates PV systems as small as a two string off grid cabin up to 16 strings for a 100KW commercial grid tie inverter. The MNPV series of combiners are the result of 20 years of design and manufacturing experience in the renewable energy industry. Each unit has the same quality features such as:

* Aluminum rainproof type 3R enclosure

* Internal plastic injection molded dead front covers

* Knock outs that accept waterproof strain reliefs, conduit or panel mount MC type connectors

* Knock outs for lightning arrestors

* Uses 150VDC and 300VDC breakers or 600VDC fuses depending on model number

* ETL listed to UL1741for use in the US and Canada

* Adaptable for two separate inverters or charge controllers on certain models

Gray aluminum type 3R rainproof enclosure with insulating dead front, will accept 16 - 600 VDC fuse holders. Includes 21 position PV negative bus bar, 18 position ground bus bar, and 240 amp Plus and Minus busbars.

Breakers/fuse holders sold separately.

For up to 100,000 watt 600 VDC grid-tie inverters

Technical Specifications

600 VDC
Circuits (strings)
16 String
1 Phase

General Information

String Inverter
MNPV Series


Warranty Documents
