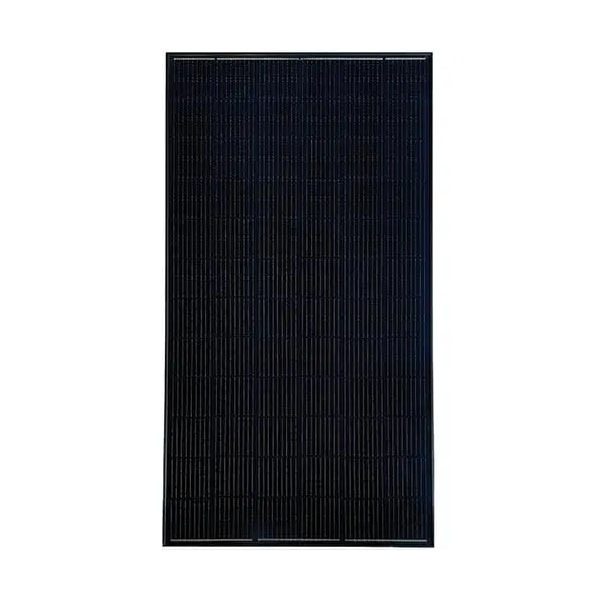

Catalog #
MSE430SX9Z
Part #
MSE430SX9Z
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
General Information
Manufacturer
Series
MSE PERC 72
Part #
MSE430SX9Z
Catalog #
MSE430SX9Z
Dimensions
2086L x 1054W x 40H mm
Weight
51.6 LBS
Approvals
UL 61730 / IEC 61215 / IEC 61730 / IEC 61701
Technical Specifications
Watts STC
430 W
Cells
72
Technology
Monocrystalline
Open Circuit Voltage (Voc)
49.26
Short Circuit Current (Isc)
11.47
Max Power Voltage (Vmpp)
39.59
Max Power Current (Impp)
10.86
Max Current
20 A
Efficiency
19.6%
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
40
Frame Color
Black
Connector
MC4 Staubli PV-KBT4-EV0 2/6II-UR and PV- KST4-EVO 2/6II-UR, Renhe RHC2xMzC
Output Cables
1.4 m, Wire 4 mm² (12 AWG)
Temp Coefficient (Pmpp)
-0.347%/C
Temp Coefficient (Voc)
-0.261%/C
Fire Classification (Type)
1
Data Sheets and Collateral
View
Datasheet
MSE430SX9Z
