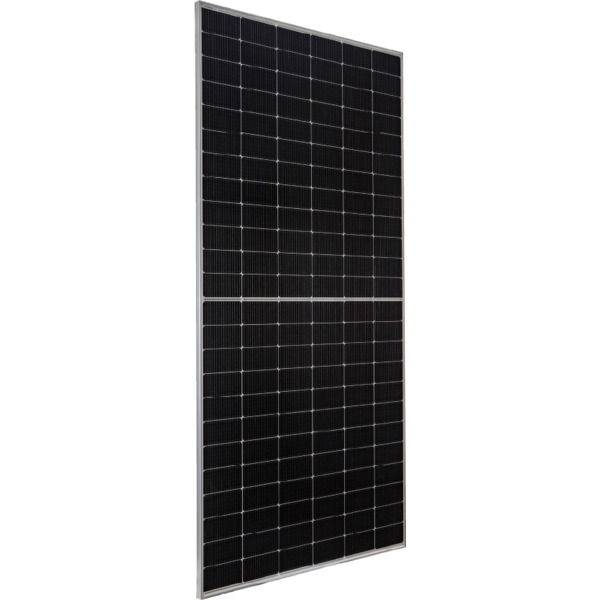

Catalog #
MSI10-550HT4T
Mfr. Part #
MSI10-550HT4T
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts STC
550 W
Cells
144
Technology
PERC
Open Circuit Voltage (Voc)
49.80
Short Circuit Current (Isc)
13.99
Max Power Voltage (Vmpp)
41.95
Max Power Current (Impp)
13.11
Max Current
30 A
Efficiency
21.5
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Connector
Staubli EVO2 MC4
Output Cables
1.2m, Wire 4mm2 (12AWG)
Temp Coefficient (Pmpp)
-0.336
Temp Coefficient (Voc)
-0.285
Fire Classification (Type)
Type 1
General Information
Dimensions
2278 L x 1134 W x 35 H mm
Weight
62.17 Lbs.
Series
MSI PERC Bifacial 144HC
Approvals
IEC 61215
IEC 61730
IEC 61701
UL 61730
