Part #

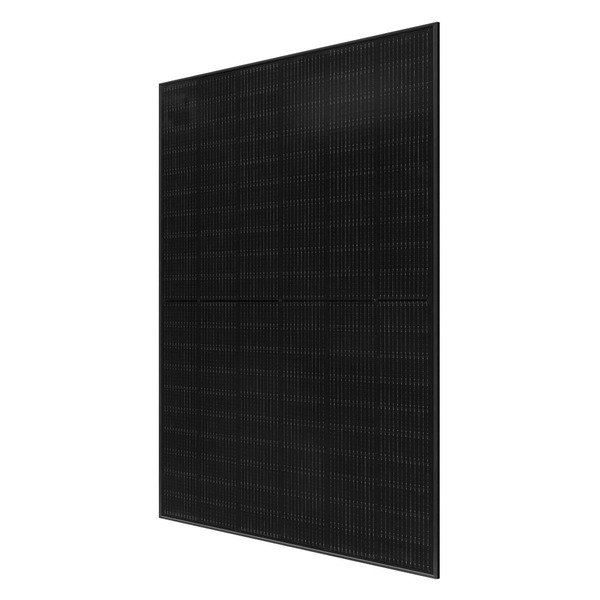

Q.PEAK DUO BLK ML-G10.C+ 415
Manufacturer
Series
Category
Take advantage of our extensive on-site inventory.
For wholesale pricing and availability:
General Information
Manufacturer
Series
Part #
Q.PEAK DUO BLK ML-G10.C+ 415
Catalog #
Q.PEAK DUO BLK ML-G10.C+ 415
Dimensions
1879 L x 1045 W x 32 H mm
Weight
48.5 Lbs.
Approvals
UL61730-1 & UL61730-2
CE-compliant
Quality Controlled PV - TUV Rheinland
IEC 61215:2016
IEC 61730:2016
Technical Specifications
Watts PTC
311.3
Watts STC
415 W
Cells
132
Technology
Monocrystalline
Open Circuit Voltage (Voc)
45.41
Short Circuit Current (Isc)
11.23
Max Power Voltage (Vmpp)
37.89
Max Power Current (Impp)
10.95
Max Current
20 A
Efficiency
21.1
Frame Material
Anodized Aluminum
Frame Thickness (mm)
32
Frame Color
Black
Backsheet Material
Composite Film
Connector
Staubli MC4
Output Cables
4mm2 Solar cable 72.04in (1830 mm)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 2
Data Sheets and Collateral
View
Datasheet
Q.PEAK DUO BLK ML-G10.C+ 415
