Part #

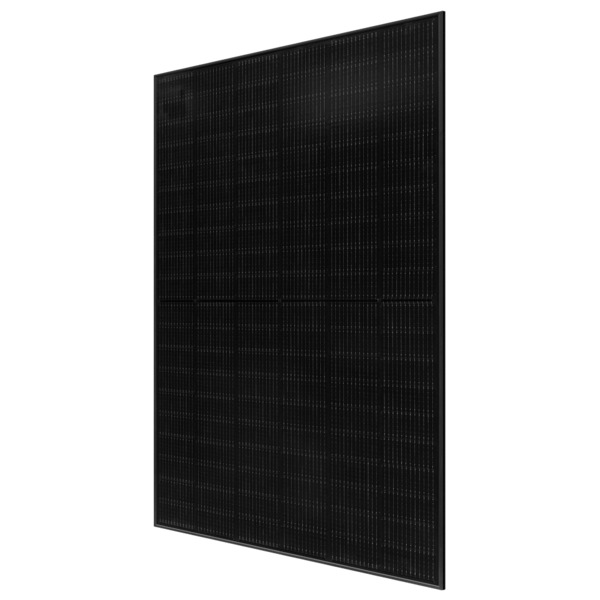

Q.PEAK DUO BLK ML-G10.C+ 405
Manufacturer
Series
Category
Take advantage of our extensive on-site inventory.
For wholesale pricing and availability:
General Information
Manufacturer
Series
Part #
Q.PEAK DUO BLK ML-G10.C+ 405
Catalog #
Q.PEAK DUO BLK ML-G10.C+ 405
Dimensions
1879 L x 1045 W x 32 H mm
Weight
48.5 Lbs.
Approvals
UL61730-1 & UL61730-2
CE-compliant
Quality Controlled PV - TUV Rheinland
IEC 61215:2016
IEC 61730:2016
Technical Specifications
Watts PTC
303.8
Watts STC
405 W
Cells
132
Technology
Monocrystalline
Open Circuit Voltage (Voc)
45.34
Short Circuit Current (Isc)
11.17
Max Power Voltage (Vmpp)
37.39
Max Power Current (Impp)
10.83
Max Current
20 A
Efficiency
20.6
Frame Material
Anodized Aluminum
Frame Thickness (mm)
32
Frame Color
Black
Backsheet Material
Composite Film
Connector
Staubli MC4
Output Cables
4mm2 Solar cable 72.04in (1830mm)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 2
Data Sheets and Collateral
View
Datasheet
Q.PEAK DUO BLK ML-G10.C+ 405
