Catalog #

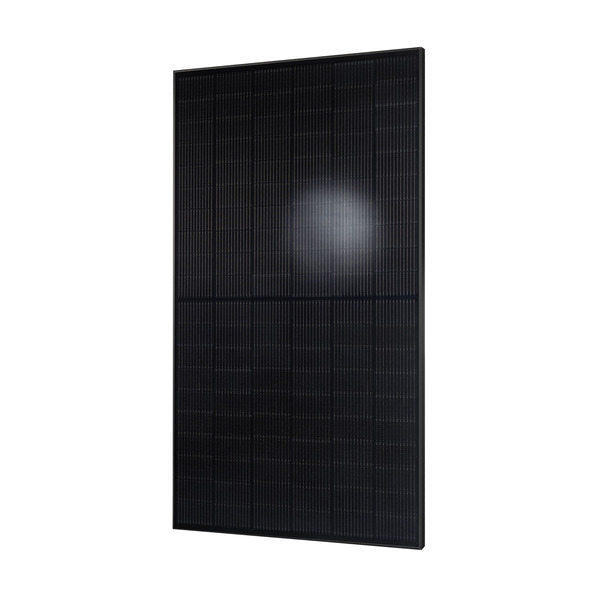

Q.TRON BLK M-G2+ 430
Part #
Q.TRON BLK M-G2+ 430
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
General Information
Manufacturer
Series
Q.Tron BLK M-G2+
Part #
Q.TRON BLK M-G2+ 430
Catalog #
Q.TRON BLK M-G2+ 430
Dimensions
1722 L x 1134 W x 30 H mm
Weight
46.7 Lbs.
Approvals
UL61730-1 & UL61730-2
CE-compliant
Quality Controlled PV - TUV Rheinland
IEC 61215:2016
IEC 61730:2016
U.S. Patent No. 9,893,215 (solar cells).
Technical Specifications
Watts PTC
325
Watts STC
430 W
Cells
108
Technology
N-type
Open Circuit Voltage (Voc)
39.32
Short Circuit Current (Isc)
13.74
Max Power Voltage (Vmpp)
32.94
Max Power Current (Impp)
13.05
Max Current
20 A
Efficiency
22
Frame Material
Anodized Aluminum
Frame Thickness (mm)
30
Frame Color
Black
Backsheet Material
Composite Film
Connector
Staubli MC4; IP68
Output Cables
4 mm² Solar cable; (+) ≥ 68.9 in (1750mm), (-) ≥ 68.9 in (1750mm)
Temp Coefficient (Pmpp)
-0.30
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 2
Data Sheets and Collateral
View
Datasheet
Q.TRON BLK M-G2+ 430
