Catalog #
Q.PEAK DUO XL-G10.D/BFG 490
Part #
Q.PEAK DUO XL-G10.D/BFG 490
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
General Information
Manufacturer
Series
Q.Peak Duo XL-G10
Part #
Q.PEAK DUO XL-G10.D/BFG 490
Catalog #
Q.PEAK DUO XL-G10.D/BFG 490
Dimensions
2216 L x 1045 W x 35 H mm
Weight
64.2 Lbs.
Approvals
Quality Controlled PV - TUV Rheinland; UL 61730
CE-compliant
IEC 61215:2016
IEC 61730:2016
Technical Specifications
Watts PTC
368.9
Watts STC
490 W
Cells
156
Technology
Q.ANTUM DUO Z
Open Circuit Voltage (Voc)
54.06
Short Circuit Current (Isc)
12.26
Max Power Voltage (Vmpp)
45.92
Max Power Current (Impp)
11.67
Max Current
20 A
Efficiency
23.1
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
0.08 In (2.0 mm) Semi-Tempered Glass
Connector
Staubli MC4, Staubli MC4-Evo2, Hanwha Q CELLS HQC4, IP68
Output Cables
4 mm2 Solar cable; (+) ≥27.6in (700mm), (-) ≥13.8in (350mm)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 29
Other Products in this Series
Similar Products
Toggle Attribution

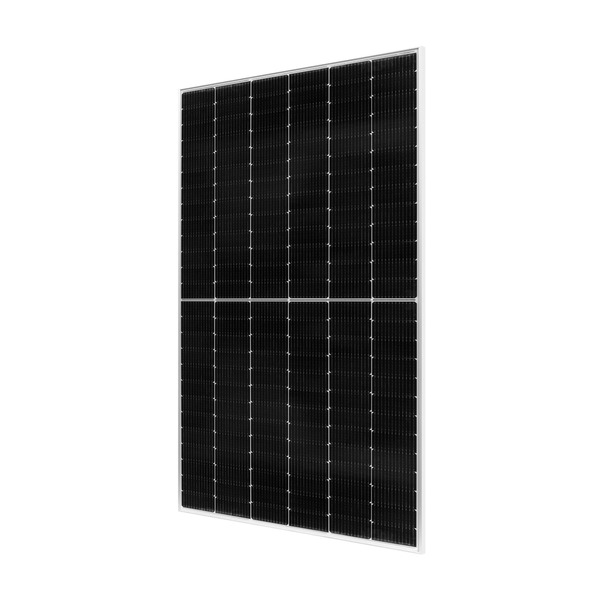

Photo by Greentech Renewables
