Catalog #
SIL 520 QM
Part #
SIL 520 QM
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
General Information
Manufacturer
Series
Silfab Commercial NTC
Part #
SIL 520 QM
Catalog #
SIL 520 QM
Dimensions
2098 L x 1133 W x 35 H mm
Weight
57.8 Lbs.
Approvals
UL 61215
UL 61730
CSA C22.2#61730
IEC 61215
IEC 61730
IEC 61701
IEC 62716
CEC Listing
UL Fire Rating: Type 1
Technical Specifications
Watts PTC
384
Watts STC
520 W
Cells
132
Technology
N-Type
Open Circuit Voltage (Voc)
47.52
Short Circuit Current (Isc)
13.65
Max Power Voltage (Vmpp)
40.48
Max Power Current (Impp)
12.85
Max Current
25 A
Efficiency
21.9
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
High durability, superior hydrolysis and UV resistance, multi-layer dielectric film, fluorine-free PV white backsheet
Connector
Staubli EVO2
Output Cables
1350 mm, φ 5.7 mm
Temp Coefficient (Pmpp)
-0.3
Temp Coefficient (Voc)
-0.26
Fire Classification (Type)
Type 1
Data Sheets and Collateral
View
Datasheet
SIL 520 QM
Other Products in this Series
Similar Products
Toggle Attribution

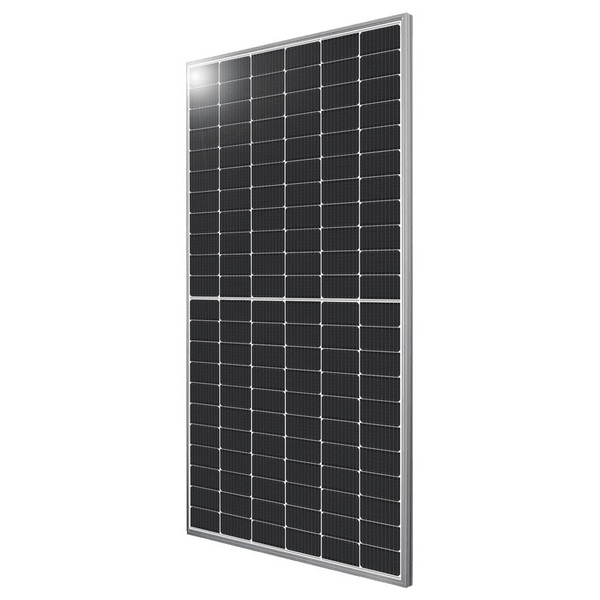

Photo by Greentech Renewables
