Catalog #

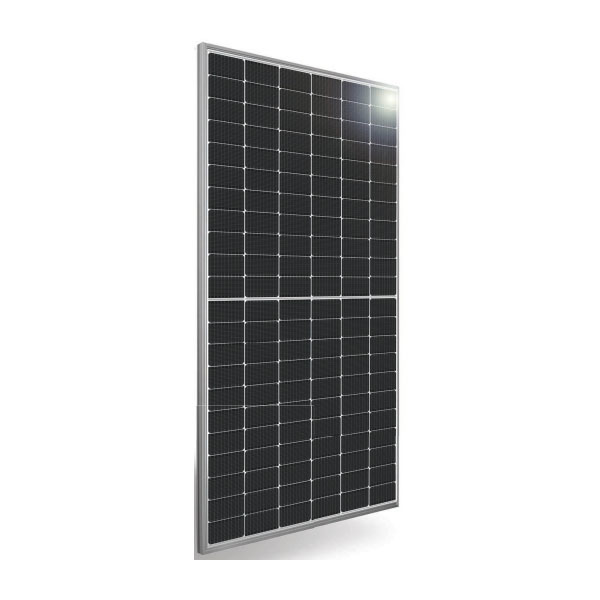

SIL 530 XM
Mfr. Part #
SIL 530 XM
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts STC
530 W
Cells
132
Technology
N-Type
Open Circuit Voltage (Voc)
47.79
Short Circuit Current (Isc)
14.96
Max Power Voltage (Vmpp)
41.05
Max Power Current (Impp)
14.08
Max Current
30 A
Efficiency
22.3
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
High durability, superior hydrolysis and UV resistance, multi-layer dielectric film, fluorine-free clear PV backsheet
Connector
EVO2 from Staubli
Output Cables
1350 mm, φ 5.7 mm
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 1
General Information
Dimensions
2098 L x 1133 W x 35 H mm
Weight
57.8 Lbs.
Series
Commercial NTC
Approvals
UL 61215
UL 61730
CSA C22.2#61730
IEC 61215
IEC 61730
IEC 61701 (Salt Mist Corrosion)
IEC 62716 (Ammonia Corrosion)
CEC Listing
UL Fire Rating: Type 1
