Catalog #

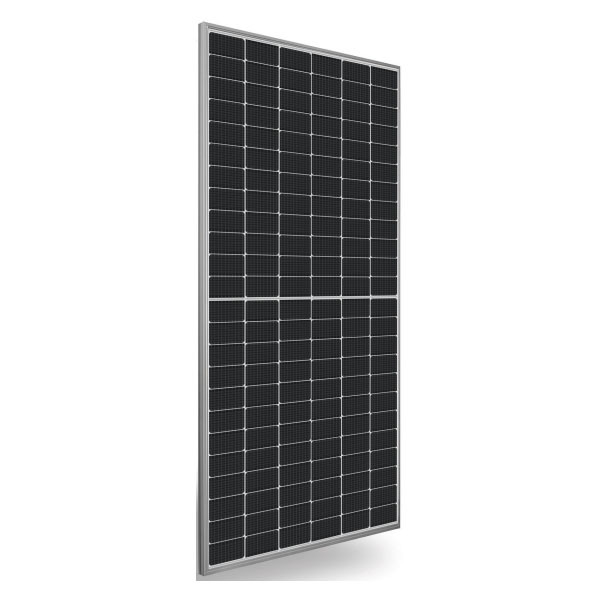

SIL 580 XM+
Part #
SIL 580 XM+
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
General Information
Manufacturer
Series
Commercial NTC
Part #
SIL 580 XM+
Catalog #
SIL 580 XM+
Dimensions
2278 L x 1133 W x 35 H mm
Weight
62.8 Lbs.
Approvals
UL 61215
UL 61730
CSA C22.2#61730
IEC 61215
IEC 61730
IEC61701 (Salt Mist Corrosion)
IEC 62716 (Ammonia Corrosion)
CEC Listing
UL Fire Rating: Type 1
Technical Specifications
Watts STC
580 W
Cells
144
Technology
N-Type
Open Circuit Voltage (Voc)
52.32
Short Circuit Current (Isc)
15.11
Max Power Voltage (Vmpp)
44.27
Max Power Current (Impp)
14.29
Max Current
30 A
Efficiency
22.4
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
High durability, superior hydrolysis and UV resistance, multi-layer dielectric film, transparent PV backsheet
Connector
EVO2 from Staubli
Output Cables
1350 mm, φ 5.7 mm
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 1
Data Sheets and Collateral
View
Datasheet
SIL 580 XM+
