Catalog #
POWERXT-400R-PM
Mfr. Part #
POWERXT-400R-PM
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

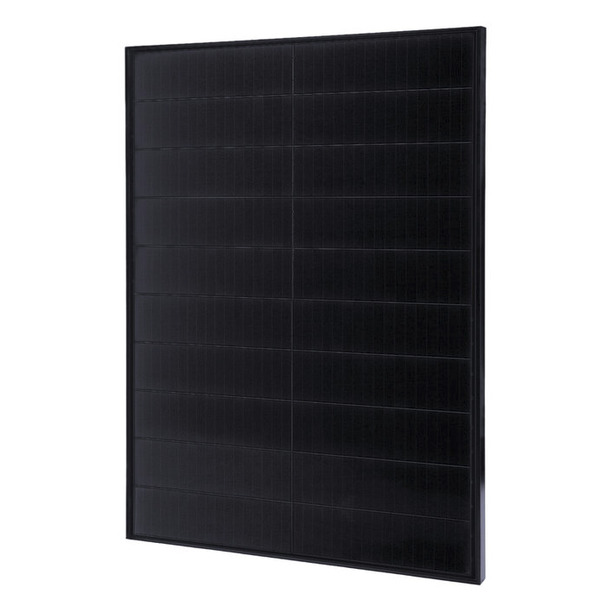

    Solaria PowerXT 400W 20 Cell Mono BLK/BLK 1000V Solar Panel, PowerXT-400R-PM


    Achieving over 20%efficiency, Solaria PowerXT solar panels are one of the highest power panels in the residential and commercial solar market. Compared to conventional panels, Solaria PowerXT panels have fewer gaps between the solar cells; this leads to higher power and superior aesthetics. Solaria PowerXT Pure Black panels are manufactured with black backsheet and frames, enhancing a home or building’s architectural beauty.

Technical Specifications

Watts STC
400 W
Cells
20
Technology
Mono
Open Circuit Voltage (Voc)
51.1
Short Circuit Current (Isc)
9.82
Max Power Voltage (Vmpp)
42.4
Max Power Current (Impp)
9.41
Max Current
9.41 A
Efficiency
20.2
Max System Voltage
1000 V
Frame Material
Black Anodized
Frame Thickness (mm)
40
Frame Color
Black
Backsheet Material
Black
Connector
MC4
Series Fuse Rating (Amps)
15
Temp Coefficient (Pmpp)
-0.39
Temp Coefficient (Voc)
-0.29
Fire Classification (Type)
1

General Information

Dimensions
64.72 L x 47.4 W x 1.57 H In.
Weight
46 lbs.
Approvals
UL 61730
UL1741
CEC
